Substation Grounding Design Effective and Practical Tips

Substation Grounding Design Tips

Practical and Effective Tips for Designing Substation Grounding Systems: A Comprehensive Guide

Introduction

A robust grounding system is the bedrock of electrical substation safety, protection, and performance. The grounding-or earthing-system not only ensures operational reliability and equipment protection but is also vital to safeguarding human life against electrical hazards. With the proliferation of high-voltage substations, rapid expansion of electrical grids, and the global push for operational excellence, designing a high-quality substation grounding system has become more complex and critical than ever. This guide synthesizes the latest industry research, standards, and practical field experience to provide actionable advice and best practices for substation grounding design, material selection, layout, compliance, and maintenance.

The guidance offered herein draws from a broad spectrum of authoritative sources, including IEEE and IEC standards, national safety regulations (such as OSHA), international case studies, and the latest technical research. Each section focuses on an essential aspect of grounding design, ensuring a comprehensive resource for engineers, utility operators, and safety professionals worldwide.

Understanding the Role of Substation Grounding

Substation grounding’s core function is to provide a low-resistance path to the earth for fault and leakage currents, protecting people and equipment from dangerous voltages during both normal operation and system failures. A well-designed grounding system minimizes touch and step voltages, ensures proper operation of protective devices, and limits equipment damage due to lightning or electrical faults. The system functions as the final line of defense for electrical safety in any power infrastructure.

Deep comprehension of these safety principles directs every element of a robust earthing design. For instance, if the earthing system is inadequately sized or poorly distributed, dangerous voltage gradients can develop during a ground fault, posing serious risks to anyone in the vicinity. Proper grounding also stabilizes system voltages under transient conditions and prevents electromagnetic interference, thereby supporting the reliable operation of sensitive equipment.

Compliance with International Safety Standards and Regulations

Key Standards and Regulatory Requirements

The design of substation grounding systems must adhere to rigorous standards and regulatory frameworks to ensure personnel safety and system reliability. The two primary global standards are the IEEE Std 80-2013 (“IEEE Guide for Safety in AC Substation Grounding”) and the IEC 61936-1 (“Power Installations Exceeding 1 kV AC - Part 1: Common Rules”), both of which prescribe design methodologies, material requirements, and safety criteria.

Additionally, OSHA regulations (notably 29 CFR 1926.962) in the United States mandate that all electric power generation, transmission, and distribution facilities ensure proper grounding to prevent electrical injury during construction, operation, or maintenance³. Many countries have adapted these fundamental provisions via national standards, with key requirements focusing on:

· Maximum allowable step and touch voltages

· Minimum conductor sizes and burial depths

· Bonding of all metal structures and equipment frames

· Periodic testing and maintenance of grounding systems

An essential first step is the identification and compliance with jurisdiction-specific codes, as these can include stricter criteria on conductor sizing, corrosion protection, labeling, or periodic testing intervals.

OSHA and Worker Protection

OSHA specifically mandates equipping personnel who work on or near energized conductors and equipment with adequate grounding protection, and enforcing rigorous procedures for grounding, testing, and inspection during substation construction and operation.

The Impact of Noncompliance

Noncompliance may not only lead to fatal electrical accidents but also severe legal, financial, and reputational risk. Notable substation accidents around the world have often been traced to inadequate or poorly executed grounding systems, highlighting the criticality of adhering to standards.

Best Practices in Substation Grounding System Design

1. Initial Site Assessment and Soil Resistivity Measurement

Rationale: The foundation of any earthing design is a precise assessment of soil resistivity at the substation site. Since soil properties greatly influence grounding grid effectiveness, accurate measurement is non-negotiable.

Common Soil Resistivity Test Methods

· Wenner Four-Point Method

· Schlumberger Method

· Driven Rod/Three Point Method

The Wenner method is the most widely recommended, as it provides highly granular data for grid modeling. Properly calibrated instruments and test procedures are critical, as erroneous measurements result in unsafe designs or unnecessary overengineering.

The engineer should conduct tests during both wet and dry seasons to capture seasonal variation, as some soils may exhibit dramatically different resistivity levels across the year. This step informs all subsequent choices in grid conductor dimensions, mesh spacing, and supplementary electrode requirements. In rocky or layered soils, multiple depth measurements are required, and computational modeling can supplement empirical data to refine the design.

Actionable Tip: Always verify soil resistivity across multiple locations and depths to confirm homogeneity or identify “hotspots” requiring design attention.

2. Grounding Grid Configuration and Layout Strategies

Rationale: The grounding grid geometry, depth, and interconnectedness shape current dissipation and safety performance.

Common Grounding Grid Types

· Mesh or Grid Pattern: Most common for substations.

· Multiple Rings: Around equipment or fence lines for added local equipotential zones.

· Radial or Star: For small, isolated installations or space-constrained sites.

A rectangular mesh grid of buried bare conductors spaced 3-7 meters apart and interconnected provides optimal distribution of fault current and minimizes potential gradient across the site². The grid should extend at least 1 meter beyond the substation fence to protect personnel near boundaries.

Mesh spacing and grid depth depend on soil resistivity, anticipated fault current, and required touch/step voltage limits (as determined by IEEE Std 80 or equivalent). Denser grids are needed in high-resistivity soils or locations with elevated fault levels. In rocky or uneven terrain, supplementary vertical electrodes (rods, plates) are integrated to lower ground resistance.

Actionable Tip: Employ a mesh network with close interconnections-ensure every metallic object is bonded to the grid.

3. Fault Current Calculation and Its Influence on Design

Rationale: All grid conductors, rods, and bonding elements must be sized for the maximum anticipated ground fault current, incorporating duration and system protection clearing times. Fault current analysis is crucial for determining conductor sizing, junction robustness, and the overall safety margin.

Steps for Fault Current Determination

· System modeling using updated protection settings

· Consideration of parallel ground paths (e.g., cable shields, water pipes)

· Application of worst-case fault scenarios (e.g., stuck breaker condition)

Once the maximum ground fault current is established, conventional formulas (per IEEE or IEC) dictate the minimum grid conductor cross-section and the number/size of ground rods. Over-sizing is common for system expansions, but excessive conservatism can add unnecessary costs.

Actionable Tip: Always use updated, accurate system fault studies for design input, and factor in parallel paths that may reduce current to the grid.

4. Selection of Grounding Materials

Rationale: The choice of conductor and rod material governs both system performance and durability. Different materials offer tradeoffs between electrical conductivity, corrosion resistance, cost, and mechanical robustness.

Material	Conductivity	Corrosion Resistance	Cost	Common Use Cases	Advantages
Bare Copper	Excellent	Good	High	High reliability substations	Low resistance, long life
Copper-Clad Steel	Very Good	Very Good	Moderate	Most utility substations	Strength, moderate cost, good durability
Galvanized Steel	Moderate	Fair	Low	Temporary or budget projects	Low cost, adequate for low-risk settings
Stainless Steel	Good	Excellent	Highest	Harsh, corrosive environments	Extreme corrosion protection
Electrolytic Tin	Moderate	Good	Moderate-High	Specialized contexts	Often used where copper theft is an issue

Bare copper is typically favored for its superior conductivity and reliability, though it is susceptible to theft and is more expensive. Copper-clad steel provides a cost-effective compromise, matching much of copper’s performance but with higher mechanical strength and moderate cost⁸⁹. Galvanized steel, while inexpensive, is vulnerable in highly corrosive soils and where long-term reliability is paramount.

Actionable Tip: Always balance cost and performance; in corrosive soils, select copper-clad or stainless steel to prolong system life.

The application of anti-corrosive coatings, cathodic protection, or chemical ground rods (filled with corrosion inhibitors) further improves durability, particularly in saline or industrially contaminated soils.

You may read the following Articles related to substation:

Major Equipment Used in an Electrical Substation

Here are some major equipment commonly found in electrical substations:

Transformers: Transformers are vital components of electrical substations.

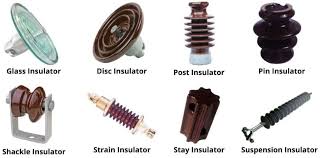

Electrical Substation Equipment: Insulator and Its Functions

Apr 20, 2025 ... Insulators are an essential component of electrical substations,

and their primary function is to provide electrical isolation and mechanical support.

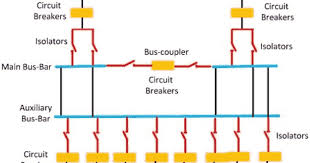

Electrical Substation Equipment: Bus Bar and Its Functions

Jul 16, 2023 ... A bus bar refers to a metal bar or a system of bars used to conduct

and distribute electrical power within the facility.

Specification of Substation Equipment for Bangladesh Public Work ...

Mar 7, 2023 ... Operating Conditions. The sub-station equipment will be connected

to the 11KV, 3-phase, 50 Hz Bus of Power Development Board (PDB) / REB / DPDC ...

Electrical Substation Equipment: Circuit Breaker and Its Functions

Jul 16, 2023 ... Transformer Protection: Circuit breakers are essential for protecting transformers

in the substation. They quickly disconnect a faulty ...

Electrical Substation Equipment: Disconnector and Its Functions

Jul 21, 2023 ... Why Disconnectors are Used in Electrical Substations? Here are

the main functions of a disconnector in an electrical substation: Isolation of ...

How to Do Categorise Different Types of Grid and Substations?

May 27, 2025 ... a. High-Voltage Distribution Substation: These substations

receive power from the transmission grid and step it down to a medium voltage level, ...

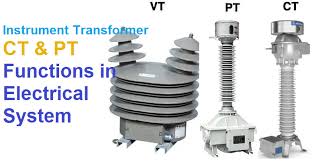

Electrical Substation Equipment: Instrument Transformer and Its ...

Instrument transformers are essential components in electrical substations that help

in the accurate measurement and protection of high-voltage circuits.

The Comprehensive Guide to Electrical Substations: Design ...

Mar 11, 2024 ... The input transformer steps up the voltage from the power supply to the level

required by the system. The output transformer steps down the ...

Electrical Substation Equipment: Grounding Network and Its Functions

Aug 1, 2023 ... The main purpose of grounding is to provide a low-resistance path

for fault currents, stray currents, and lightning surges, allowing them to flow to the ground.

5. Ground Grid Modeling and Simulation

Grounding System Testing and Commissioning

Rationale: Comprehensive computer-based modeling allows precise prediction of grid performance under worst-case fault scenarios and is essential for verifying safe touch and step voltage profiles throughout the substation.

Recommended Software Tools

· ETAP: Advanced 3D modeling and compliance verification.

· CDEGS: Widely used for detailed soil and electromagnetic analysis.

· SafeGrid and others: 2D/3D grid visualization, supporting data import/export.

These platforms accept field-collected soil resistivity data, site plans, and predicted fault currents, automatically generating compliance reports with overlayed hazard maps. The iterative use of such tools helps optimize material use (e.g., mesh spacing, conductor diameter) and ensures no unsafe locations remain undetected.

Actionable Tip: Always validate preliminary designs using simulation tools and optimize mesh layout to minimize material without compromising safety.

6. Corrosion Protection Strategies

Rationale: Substation ground grids operate in harsh environments-moisture, soil acidity, chemical contamination, and stray currents can quickly degrade exposed conductors, drastically reducing grounding system life and reliability.

Corrosion Mitigation Techniques

· Select corrosion-resistant materials (e.g., copper-clad, stainless steel).

· Apply protective coatings (epoxy, bitumen, or polymer sheaths).

· Employ cathodic protection systems where stray DC is a risk.

· Periodic inspection and testing for early detection.

Electrolytic corrosion is a significant threat, particularly in urban or industrial sites with stray DC currents or compromised soil conditions. In such environments, sacrificial anodes may be used for supplementary protection.

Actionable Tip: For new installations in known aggressive soils (chlorides, industrial waste), budget for enhanced coatings and cathodic protection at the design stage.

7. Bonding and Equipotentialization Techniques

Rationale: Equipotential bonding eliminates dangerous voltage differences between equipment frames, structures, fences, and the earth, ensuring personnel are always shielded from hazardous potential gradients during faults.

Equipotential Bonding Approaches

· Bond all metallic non-current-carrying components (cable trays, fences, building steel, handrails) directly to the main grid.

· Bond all control and signal cables using dedicated grounding clamps.

· Use dedicated equipotential mats in operator work areas or at entry/exit gates.

In larger substations, additional equipotential rings or mats are recommended for locations where operators may be exposed to hazardous potentials-such as control buildings, gates, or outdoor panels. These measures also prevent dangerous “touch voltages” if personnel come into contact with metallic surfaces during a fault.

Actionable Tip: Always bond the substation fence to the main ground grid, and never allow isolated metallic paths that could develop lethal voltages under fault conditions.

8. Grounding System Testing and Commissioning

Rationale: Installation errors or undetected soil conditions can undermine even the best-designed grounding system. Rigorous field testing and final commissioning prove the real-world safety of the completed grid before it is energized.

Recommended Commissioning Tests

· Ground grid resistance measurement (e.g., Fall-of-potential, Clamp-on, or Earth Injection methods)

· Step and touch voltage testing at all critical points

· Visual verification of all bonds and conductor continuity

Modern grid resistance testers and soil injection techniques (such as those used by utilities in Australia and Europe) allow accurate checking of grid integrity, even for large installations or challenging topologies. Any failure to meet resistance or voltage requirements must be rectified by adding rods, improving bonds, or modifying grid layout before energization.

Actionable Tip: Create and follow a detailed commissioning checklist, documenting all test results for regulatory compliance and future reference.

9. Scheduled Maintenance and Inspection Procedures

Rationale: Over time, mechanical damage, corrosion, construction work, or ground disturbance can compromise the earthing system’s continuity and effectiveness. Scheduled maintenance ensures long-term performance and safety compliance.

Maintenance Checklist (Summary)

· Annual or biannual visual inspection of all above-ground bonds and connections

· Measurement of grid resistance at scheduled intervals

· Inspection and testing of all critical bolted/jointed interfaces

· Verify fence bond integrity and continuity

· Document and address any signs of corrosion, mechanical breaks, or unauthorized modifications

Actionable Tip: Maintain comprehensive records of inspection and test results, as many regulatory agencies may require evidence of ongoing maintenance.

10. Seasonal and Environmental Considerations

Rationale: Substation grounding effectiveness varies with soil moisture, temperature, and composition. Seasonal changes (e.g., high-dry summer followed by wet winters) can alter soil resistivity by several orders of magnitude, directly impacting grid safety.

Environmental Factors to Monitor

· Frost or permafrost elevating resistivity in winter

· Drought/compaction causing “dry-outs” in summer

· Soil salinity and groundwater chemistry near coasts or in agricultural areas

· Industrial chemical contamination in urban locations

Design must accommodate these variations by using worst-case resistivity data and employing deeper rods or enhanced materials in locations subject to severe conditions.

Actionable Tip: Document local environmental cycles and conduct soil testing at least once per major season to ensure reliable safety margins year-round.

11. Safety Signage and Worker Training

Rationale: Engineering controls are only part of the risk mitigation equation. Clear safety signage and comprehensive worker training drastically reduce the risk of grounding-related accidents during maintenance, construction, or emergency scenarios.

Safety Installation Key Practices

· Use standardized danger and warning signs per ANSI/NESC/IEC recommendations

· Label all access gates, perimeter fences, ground connections, testing points, and isolated hazards

· Include site-specific voltage warning signs reflecting actual measured data during commissioning

Worker training must cover the operation and rationale of the grounding system, expected voltage hazards, lockout/tagout procedures, and emergency response (including safe egress routes in a ground fault event).

Actionable Tip: Integrate training and signage updates into routine maintenance, especially after any revision to grounding layout or after detection of new hazards.

12. Cost Optimization and Material Efficiency

Rationale: Substation grounding constitutes a significant portion of overall construction cost. Careful engineering enables optimal use of materials while meeting all code and safety requirements, especially for large, multi-site utility projects.

Effective Cost-saving Measures

· Use computer-aided optimization (e.g., ETAP or CDEGS) to minimize conductor length and rod count while preserving safety margins.

· Employ grid meshing densities that focus material in high-risk locations (e.g., around the power transformer, control building)

· Select copper-clad steel or galvanized steel where acceptable, with selective use of pure copper in critical areas

Actionable Tip: Avoid overdesign by tailoring grid layout and sizing based on true, measured soil conditions and actual fault current risk.

13. Innovations and New Trends in Substation Earthing

Rationale: The evolution of power systems, electrification of transportation, climate adaptation, and new technologies (e.g., digital substations, remote monitoring) are driving significant innovations in grounding techniques.

Emerging Technologies and Practices

· Real-Time Grid Monitoring: Deployment of sensors to monitor ground potential rise (GPR), resistance, and conductor integrity for preventive maintenance.

· Advanced Material Science: Use of nanomaterial treatments, composite rods, and corrosion-inhibiting mouthings extending operational life.

· Lightning and Transient Detectors: Integration of sophisticated surge arresters and monitoring systems to immediately detect and localize transient overvoltages.

· Digital Twin/Simulation: Use of digital twins for simulation, design optimization, and what-if scenario analysis, especially for large-scale interconnected substations.

These technologies promise improved reliability, lower lifecycle cost, and the possibility of remote diagnostics for grid operators, supporting faster response to incidents and more efficient capital investment.

Actionable Tip: Stay abreast with current research and industry adoption of these trends, as utility regulators and standards bodies are gradually incorporating them into formal guidelines and best practices.

Table: Summary of Key Grounding Techniques, Materials, and Their Advantages

Technique/Component	Typical Material	Primary Application	Main Advantages
Grid/Mesh System	Bare copper, Cu-clad Steel	All substation layouts	Uniform voltage distribution, robust, code-compliant
Vertical Ground Rods	Copper, Cu-clad, Galvanized Steel	High resistivity/fault sites	Reduces grid resistance, effective in layered soils
Deep Driven Rods	Stainless Steel, Cu-clad	Rocky/urban sites, high GPR zones	Overcomes high surface resistance, durable
Equipotential Bonding	Copper, Cu-clad	Fences, metallic structures	Reduces touch/step voltages, safety critical
Ring/Perimeter Systems	Copper, Tin-plated	Boundary control, critical equipment	Prevents perimeter hazard, enhances operator safety
Coating/Cathodic Protection	Epoxy, Zinc, Sacrificial Anodes	Corrosive/industrial soils	Extends system life, prevents failures
Soil Enhancement Compounds	Bentonite, Conductive concrete	High-resistivity soil improvement	Uniform resistance profile, maximizes grid efficacy
Computer Modeling	n/a (Software tool)	Design and risk optimization	Minimizes material use, ensures compliance

Each of these techniques is best used in conjunction, tailored to the specific substation’s environment, design criteria, and operational requirements. For example, in coastal installations, the use of stainless steel vertical rods combined with anticorrosive coatings may be preferable despite higher upfront cost, due to vastly extended lifespan and zero risk of catastrophic failure. Meanwhile, high-resistivity inland sites may rely on mesh and grid systems, augmented with soil enhancement and regular testing.

In-Depth Discussions and Practical Guidance by Topic

Soil Resistivity Measurement Techniques: Deeper Dive

Accurate soil resistivity surveying is often underestimated yet is the most critical determiner of grounding performance. Erroneous or sparse measurements commonly result in the underdesign (unsafe) or overdesign (needlessly expensive) of grids. The Wenner Four-Point Method remains the industry gold standard. Electrodes are spaced at equal distances and inserted sequentially at various lengths to “see” both shallow and deep layers. Software modeling can further interpret layered soil effects, enabling engineers to address phenomena such as wet surface clay atop dry sand, which complicates safe dissipation of fault currents.

In challenging sites (urban brownfields, rocky soil, mountainous regions), rod-and-cone methods and even borehole-driven probes are used to sample deeper strata. In all cases, calibration and maintenance of remain paramount: dirty or poorly contacted probes can yield order-of-magnitude errors.

Ground Grid Modeling and Analytical Optimization

Design software (e.g., ETAP, CDEGS, SafeGrid) not only automates mesh sizing, material calculation, and hazard mapping, but simulates “what-if” contingencies, such as future station expansion, partial grid failure, or unexpected soil drying. These platforms seamlessly integrate measured soil data, grid geometry, and expected system current, producing results compliant with IEEE Std 80 or IEC 61936-1. Output graphics flag locations where step or touch voltages may exceed safety limits, guiding engineers to locally densify meshes, add rods, or bond additional structures.

Maintenance, Inspection, and Lifecycle Management

Industry case studies reveal that many catastrophic grounding failures occur not through original design error, but through system degradation-corrosion, cut bonds during unrelated excavations, or theft of accessible copper rods. Codified inspection protocols mandate the annual or biennial measurement of accessible connections, testing for grid resistance, and verification of all visible conductor and bond integrity.

Additional field best practices include:

· Ground resistance measurement by the fall-of-potential or clamp-on methods, preferable for minimally invasive maintenance in operational substations.

· Monthly inspection where public access or high soil corrosivity warrants more frequent monitoring.

· Immediate repair or replacement of damaged, corroded, or missing ground conductors.

Worker Training and Human Factor Engineering

Even the most advanced engineering cannot wholly mitigate electrical risks if operators or contractors do not understand the underlying hazard. Embedding worker safety training within commissioning, revisiting procedures annually, and using real-world near-miss case studies dramatically reduces the risk of fatal incidents.

Training programs should include simulations of ground fault scenarios, demonstrations of step and touch voltage hazards, and hands-on grounding system testing exercises. All staff and contractors must be trained to recognize and immediately report any broken, damaged, or suspicious ground connections.

Special Considerations for Unique Environments

· High Water Tables: Use corrosion-resistant, deeply driven rods; ensure no standing water accumulates near critical grid points.

· Mountain/Rocky Sites: Employ chemical rods or conductive backfill to compensate for poor native soil, and expect to recalibrate mesh density accordingly.

· Urban/Industrial Sites: Factor in interference from underground metallic infrastructure, adjacent substations, and variable backfill soils; survey for stray currents and include additional electrode paths as needed.

Recent Innovations and Digitalization

The recent adoption of Internet of Things (IoT) sensors in substations allows real-time monitoring of ground grid health, sending alarms if resistance jumps-indicating probable corrosion, mechanical damage, or theft. Digital twins, or dynamic digital models of the substation grid, can be updated in real time as field conditions change, enabling predictive maintenance and rapid root-cause analysis in the event of an incident.

These trends are poised to become mainstream within the decade, enhancing reliability and safety, as well as optimizing operations and maintenance budgets.

Conclusion

The design of substation grounding systems is a multidisciplinary endeavor that couples classical electrical engineering, material science, regulatory compliance, and real-world risk management. Grounding must be addressed with rigor at every step-from initial site soil resistivity survey and grid modeling, through conscientious material and layout choice, to thorough commissioning, signage, and maintenance programs. With the electrification of critical infrastructure and the expansion of complex, interconnected grids, failure to properly ground substations is an unacceptable risk. By following the best practices detailed here-rooted in the latest standards, case studies, and industry tools-engineers and operators can not only comply with codes but also meaningfully enhance asset reliability and human safety.

For all professionals engaged in substation design, operation, or maintenance, continued learning and adaptation to new technologies and standards are essential. With the accelerating pace of innovation and mounting environmental challenges, only a commitment to robust, adaptive, and thoroughly audited grounding systems can ensure the long-term security and performance of power infrastructure.

References (33)

1. Analysis of electrical grounding design of substation and lines. https://srrjournals.com/ijsret/sites/default/files/IJSRET-2023-0016.pdf

2. How to Design Effective Substation Grounding (Practical Tips). https://electrical-engineering-portal.com/effective-substation-grounding

4. IEEE SA - IEEE 80-2013. https://standards.ieee.org/standard/80-2013.html

3. 29 CFR 1926.962 -- Grounding for the protection of employees.. https://www.ecfr.gov/current/title-29/subtitle-B/chapter-XVII/part-1926/subpart-V/section-1926.962

5. Wenner method: Measuring soil resistivity. https://ionio.nl/en/blog/wenner-method-measuring-soil-resistivity/

6. A Guide to Substation Earthing Design and Understanding Dangerous .... https://electrical-engineering-portal.com/download-center/books-and-guides/power-substations/substation-earthing-design-dangerous-voltages

7. How to calculate fault current in electrical substation grounding .... https://esgrounding.com/blog/how-to-calculate-fault-current-in-electrical-substation-grounding-design

8. Copper or steel? Comparison of ground electrode systems' materials. https://zandz.com/en/news/copper-or-steel-comparison-of-ground-electrode-systems-materials/

9. Bare Conductor Corrosion Effects and Prevention Methods. https://hnbfpower.com/bare-conductor-corrosion-effects-and-prevention-methods.html

10. Substation Grounding Grid Calculator - IEEE 80. https://www.calculatorsconversion.com/en/substation-grounding-grid-calculator-ieee-80/

11. System Grounding and Earthing Types Analysis Software . https://etap.com/product/system-grounding-and-earthing-software

12. A novel approach for enhancing substation grounding grid design using .... https://www.degruyterbrill.com/document/doi/10.1515/ijeeps-2025-0073/html

20. Report - electranet.com.au. https://electranet.com.au/wp-content/uploads/2024/12/1-11-FR-12-Substation-Signage.pdf

14. What is the purpose of equipotential bonding? . https://electrical-engineering-portal.com/purpose-of-equipotential-bonding

15. Substation Earth System Injection Testing SWP SP0510 - 2920270. https://www.ergon.com.au/__data/assets/pdf_file/0010/1099945/Substation-Earth-System-Injection-Testing-2920270.pdf

16. A Handbook for Solving Problematic Cases in AC Substation ... - EEP. https://electrical-engineering-portal.com/download-center/books-and-guides/power-substations/handbook-solving-problematic-cases-ac-substation-grounding-systems

17. Electrical Substation Maintenance Checklist & Schedule. https://checklistoo.com/electrical-substation-maintenance-checklist-schedule/

18. Effect of both Ambient Temperature and Soil Moisture on the Earthing .... https://jaes.journals.ekb.eg/article_18935_46c884bd1b26378adeeba403b20ee6e2.pdf

19. A COST OPTIMIZATION METHODOLOGY FOR DESIGN. https://dl.lib.uom.lk/bitstreams/6e5f4a9c-618a-4acb-a7c3-270e4cf9e530/download

13. Earthing Design in Underground Substations using ETAP. https://studylib.net/doc/25670681/design-of-earthing-in-underground-substation-using-etap-w...
